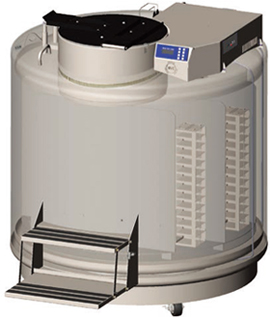

The new MVE HEco 1800 Series freezers provide a reduction in LN2 usage, making them the most efficient vapor freezers available. When an LN2 fill is initiated, the redesigned plumbing system optimizes the LN2 flow and reduces transfer loss, increasing efficiency and LN2 cost savings. The 1800 series provides option for greater storage in one freezer. These next generation high efficiency freezers incorporate new hinged work surfaces that fully enclose all electronics and plumbing to enhance overall safety and usability. The technical and visual improvements provide an aesthetically more pleasing freezer while offering greater functionality. As with all of MVE’s cryogenic freezers, the MVE HEco 1800 Series freezers provide maximum storage density as well as the longest hold time and highest sample security in the industry.
- ●LN2 usage reduction
- ●Fully enclosed wiring and plumbing
- ●Vacuum jacketed transfer hose
- ●Dry sample storage
- ●-190°C top box temperature
- ●Lowest liftover height
- ●Two tier folding step
- ●Optional battery backup

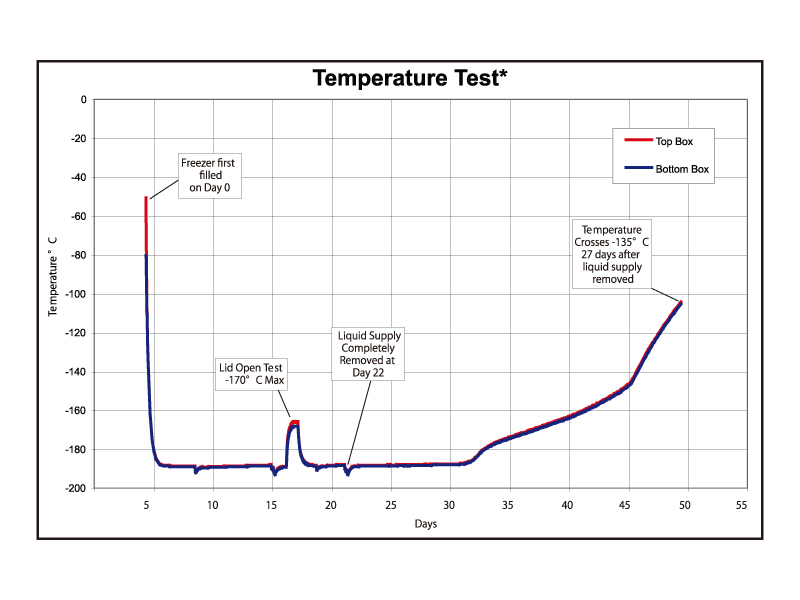

温度テスト
クリックで拡大します
* Temp Test indicates typical performance of HEco Series -190°C freezer with full inventory system
and factory recommended level settings.
Actual performance may vary with atmospheric conditions and usage.
| MVE HEco 1879P-190 |
MVE HEco 1892P-190 |
MVE HEco 1894R-190 |
|||||||
| 最大保存容量 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1.2ml又は2ml アンプル（内側 にねじ切り） |
79,950 | 92,250 | 94,500 | ||||||

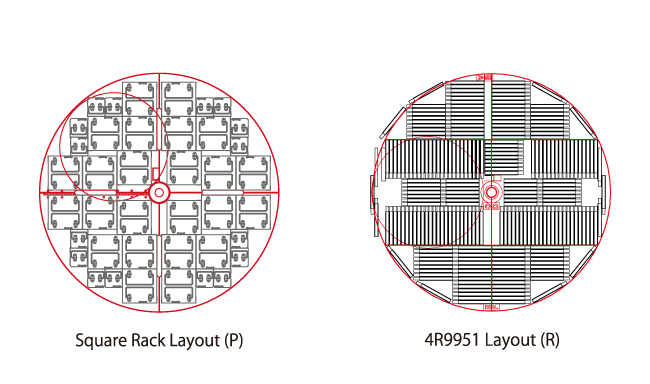

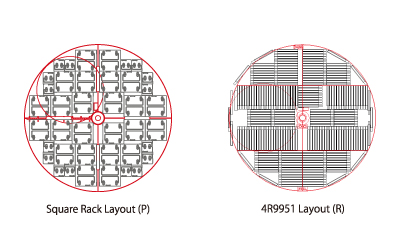

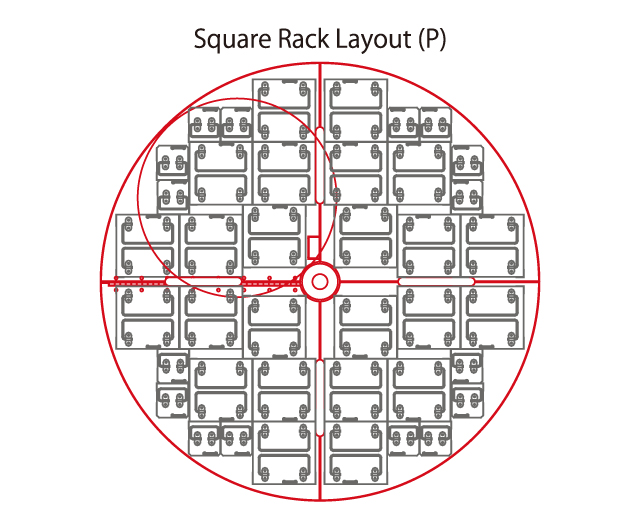

| ラック数（100 本立ボックス） |
54 | 54 | 60 | ||||||
| ラック数（25 本立ボックス） |
30 | 30 | 12 | ||||||
| ラック毎収容数 | 13 | 15 | 15 | ||||||
| 性能 | |||||||||
| 液体窒素容量（L） | 1745 | 1770 | 1770 | ||||||
| 気相保存プラッ トフォーム下部 の液体窒素容量（L） |
318 | 295 | 295 | ||||||
| 静止保存日数 -Vapor |
35 | 30 | 30 | ||||||
| 静止保存日数 -Liquid Full |
174 | 177 | 177 | ||||||
| 容器寸法 | |||||||||
| ネック口径（mm） | 24.7 (627) | 24.7 (627) | 24.7 (627) | ||||||
| 有効高（内寸）（mm） | 29.5 (749) | 34.5 (876) | 34.2 (868) | ||||||
| 内径（mm） | 56.0 (1422) | 56.0 (1422) | 54.7 (1389) | ||||||
| 全高（mm） | 63.7 (1618) | 68.6 (1742) | 68.6 (1742) | ||||||
| 有効使用高（mm） | 38.8 (985) | 44.0 (1118) | 44.0 (1118) | ||||||
| ドア幅（mm）** | 60.0 (1524) | 60.0 (1524) | 60.0 (1524) | ||||||
| 空重量（kg） | 1712 (781) | 1721 (781) | 1721 (781) | ||||||
| 充填重量（kg）* | 4830 (2191) | 4875 (2211) | 4875 (2211) | ||||||
| 血液バッグ収容数 | |||||||||
| バッグ総数 | フレーム毎 バッグ数 |
フレーム数 | バッグ総数 | フレーム毎 バッグ数 |
フレーム数 | バッグ総数 | フレーム毎 バッグ数 |
フレーム数 | |
| 791 OS/U (25 ml) |
5,866 | 7 | 838 | 6,704 | 8 | 838 | 6,432 | 8 | 804 |

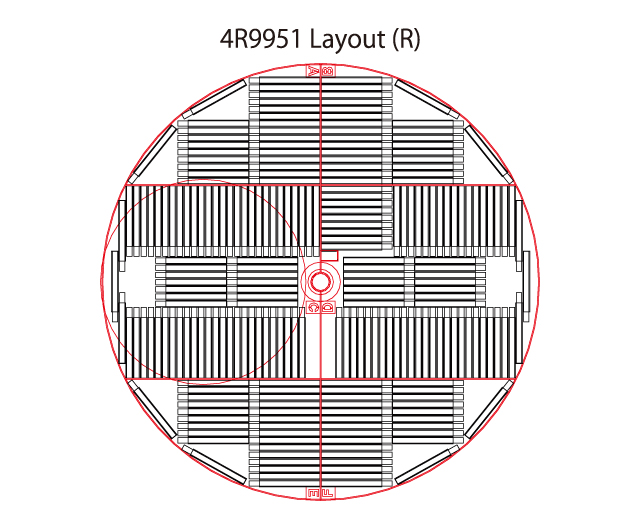

| 4R9951 (50 ml) |
2,952 | 6 | 492 | 3,936 | 8 | 492 | 3,920 | 8 | 490 |
| 4R9953 (250 ml) |
1,584 | 4 | 396 | 1,980 | 5 | 396 | 2,010 | 5 | 402 |
| 4R9955 (500 ml) |
1,104 | 4 | 276 | 1,380 | 5 | 276 | 1,550 | 5 | 310 |
| DF200 (200 ml) |
960 | 4 | 240 | 1,200 | 5 | 240 | 1,230 | 5 | 246 |
| DF700 (700 ml) |
504 | 4 | 126 | 630 | 5 | 126 | 680 | 5 | 136 |
* Without inventory
** Minimum width required for vessel to pass through opening. Footprint may vary.
Contact Tech Service for detailed drawings.
